1U 19-inch 96 Ports LC Fiber Distribution Panel

1U 19-inch 96 Ports LC Fiber Distribution Panel
1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel 1U 19-inch 96 Ports LC Fiber Distribution Panel

Image Grand :  1U 19-inch 96 Ports LC Fiber Distribution Panel

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: Unifiber or OEM
Certification: ROHS
Numéro de modèle: Panneau de distribution de fibre LC à 96 ports
Conditions de paiement et expédition:
Quantité de commande min: 10
Prix: Négociable
Détails d'emballage: Boîte en carton
Délai de livraison: 3~5 jours
Conditions de paiement: LC, T/T
Capacité d'approvisionnement: 100 pièces/jour
Description de produit détaillée
Produit: Panneau de distribution fibre LC 1U 19 pouces 96 ports Non des ports: 96 ports
Type d'adaptateur: LC duplex Nombre de plateaux: 2
Capacité de plateau: 48 Core Matériel: Acier laminé à froid
Couleur: Noir
Mettre en évidence:

1U 19-inch fiber distribution panel

,

96 ports LC fiber patch panel

,

rack mount fiber optic panel

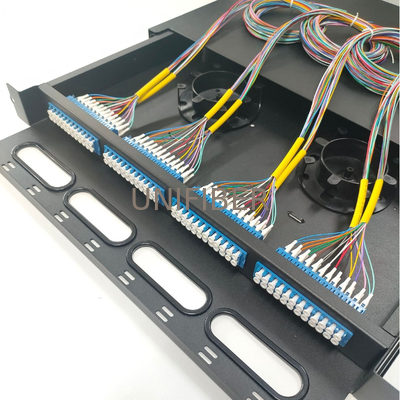

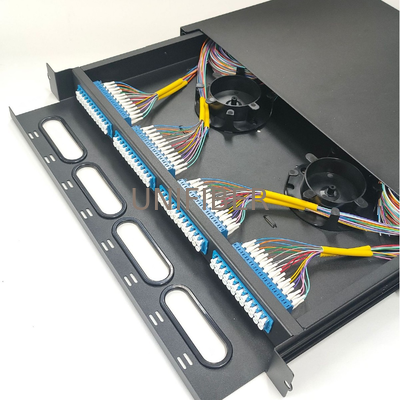

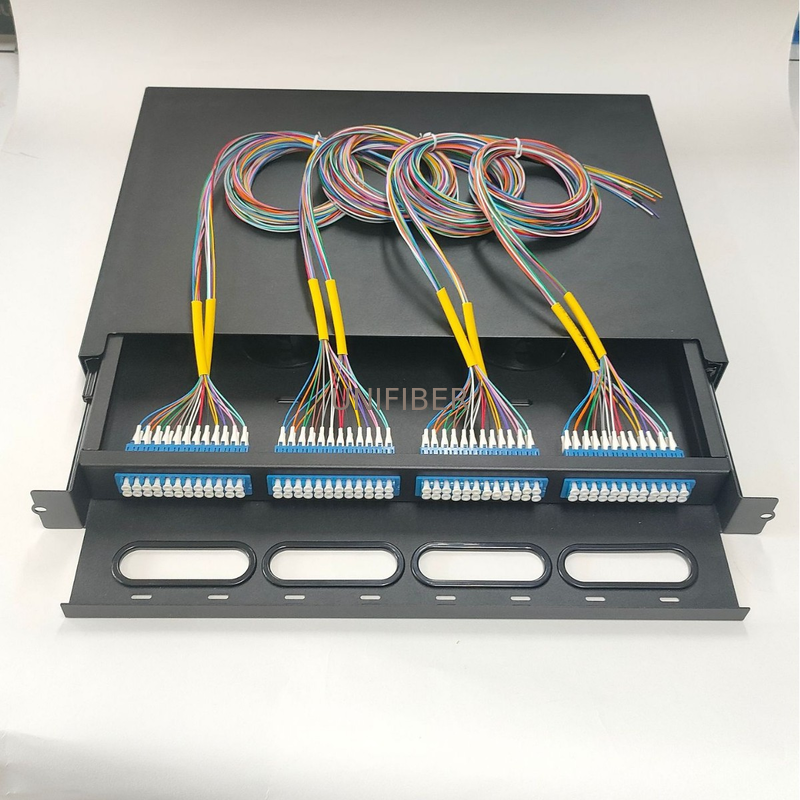

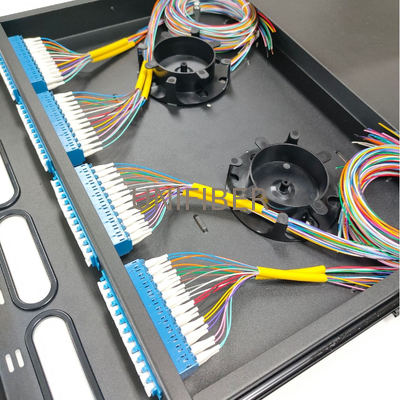

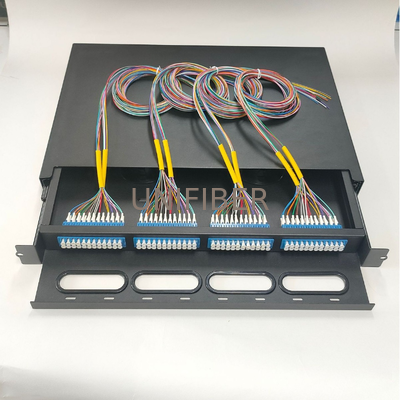

1U 19-inch 96 Ports LC Fiber Distribution Panel
This 1U 96 Port HD Fiber Optic Patch Panel supports 4 interchangeable adapter modules for LC or SC connectors. It can accommodate fiber splicing for up to 96 fibers with 2x 48F splicing trays and also supports 4x MPO/MTP cassette modules. This panel provides an ideal high-density cable management solution for modern data center environments.
Applications
  • Data Center Infrastructure
  • Fiber Channel Networks
  • Storage Area Networks
  • Emerging 40G and 100Gbps Protocols (Compatible)
Key Features
  • Supports MPO/MTP cassette modules for high-density applications
  • Accommodates up to 96 single fiber splices
  • Includes 2 splice trays, each supporting 48 fiber splices
  • Features 4 separate interchangeable adapter plates
  • Standard unit structure compatible with various cabinets and racks
  • Multiple optical cable entry points with enlarged inlets for easy cable routing
  • Secure cable fixation using optical cable fixing columns or metal reinforcements
Technical Specifications
Model Number 1U 96 Port HD Fiber Optic Patch Panel
Max Capacity 96 Ports
Cassettes Compatible 4x 24 adapter module
Connector Type Duplex LC, SC or MPO/MTP
Pre-Connection Optional
Material SPCC (Cold Rolled Steel Sheet)
Finishing Powder Coated Matt Black
Dimension (mm) 482.6*363.2*1U/2U
Operation Temperature -20℃ ~ 70℃
1U 19-inch 96 Ports LC Fiber Distribution Panel 0
